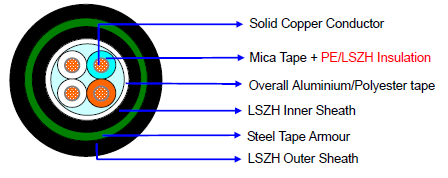

IEC 60331 Indoor Fire Resistant armoured Telephone Cable
Application
This cable is used for the internal wiring of building when the circuit integrity during fire is paramount. The cable
is intended to take the place of LSZH sheathed cables and will withstand similar environments with a similar
working life. It is intended for use in fire fighting plants with mica tapes, with aluminium foil and LSZH outer
sheath.
Fire Performance
Fire Resistance: IEC 60331.
Flame Retardance: IEC 60332-3C.
Corrossive and Acid Gas Emission Test: Hydrochloric acid yield less than 0.5% in accordance with IEC 60754-
1&2.
Smoke Density: Percentage of light transmitted is greater than 60% when tested in
accordance with IEC
61034-1&2.
Construction
Conductor: Solid annealed bare copper sized 0.6mm.
Fire Barrier: Mica tape.
Insulation: Polyethylene or Low smoke fume zero halogen compound (LSZH).
Twisting: Two colored insulated conductors are uniformly twisted together to form a pair.
Shape: Circular
Screen: Overall Aluminium/Polyester tape
Drain Wire: Solid copper wire sized 0.6mm.
Inner sheath: Flame retardant low smoke fume zero halogen compound (LSZH)
Armour: Steel tape armour is applied over the inner sheath.
Outer Sheath: Flame retardant low smoke fume zero halogen compound (LSZH)
Sheath color: Black
Marking: The cable is marked with white or other colors as follows:
A) Caledonian Cables Co., Ltd
B) Type and size of cable
C) Manufacturing date
D) Meter Marking
The meter mark is printed every meter with an accuracy of 0.5%.
Other printing are available according to customer request.
Table 1. Dimensions
Diameter of Conductor (mm) |
Insulation Thickness (mm) |
Thickness of Outer Sheath (mm) |
Diameter of Cable (mm) |
Approx. Weight (kg/km) |
|---|---|---|---|---|
1/0.6 |
0.25 |
1.6 |
18.0 ± 1.5 |
380 |
